Tube Profile Cutting Machine
999999,00 zł
Do You Have Questions? Call Us +1 255 854 55 26
Description
Product Introduction

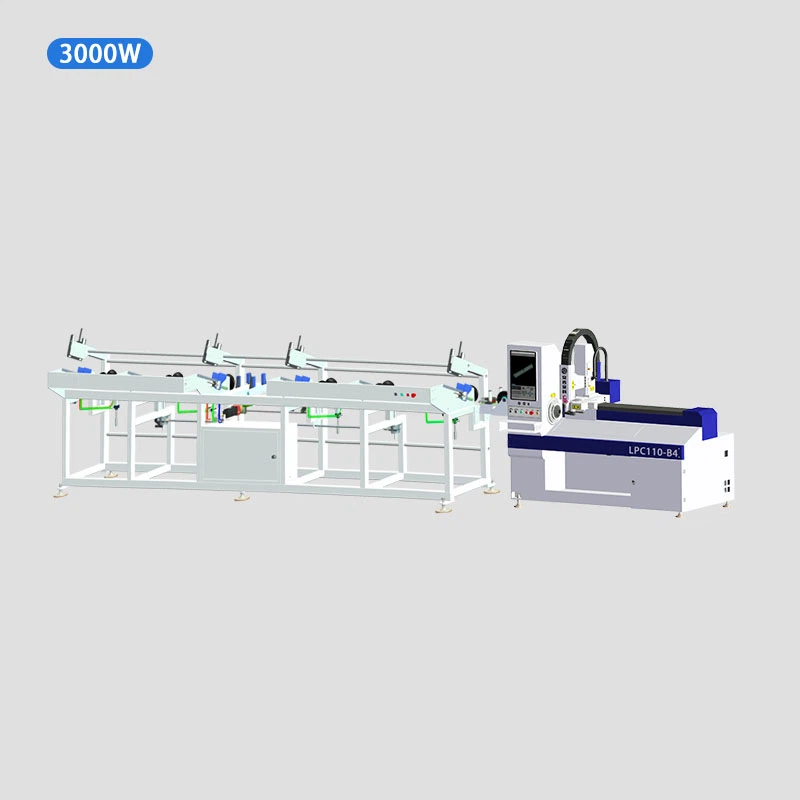

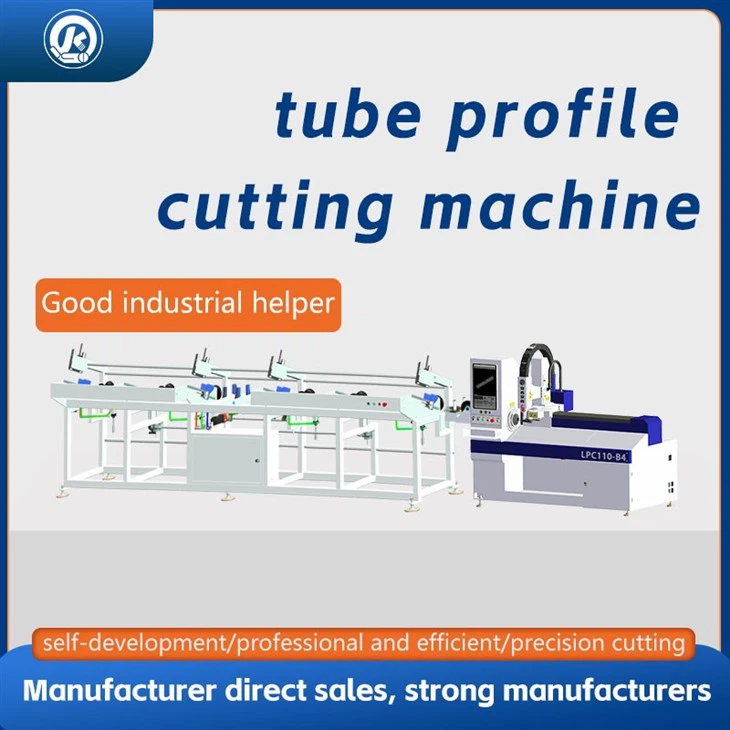

LPC110-B4-CF6000 tube profile cutting machine can cut various irregular tubes, and the chuck varies with the size of the tube. It is specially designed for round and thin pipes to avoid deformation and ensure cutting accuracy.
Product Parameter
| Mode | LPC110-B4 tube profile cutting machine |
| Length of pipe | Unlimited length |
| Diameter of pipe | φ6-φ110 |
| Tail | ≥50MM |
| Cutting precision | ±0.05MM |
| Position precision | ±0.2MM (Accuracy of pipe itself with±0.1) |
| Pulling precision | ±0.1MM(Einma) |
| Slot width | 0.1-0.2MM |
| Repositioning Accuracy | ±0.03MM |
| Accelerated speed | 1.5G |
| Pulling way | Air-operated |
| Total weight | 850kg |
| Power Supply | 380V |
| Dimension | 2100mm×1300mm×1900mm |
| Major Parameter | Semi automatic material rack CF-6000 |
| loading mode | Permutation |
| Packing weight | 1.5T |
| Suitable tube type | Round tube, square tube, rectangular tube |
| Tube feeding range | φ10-φ110 |
| Length of pipe in use | 5000-7000MM |
| power supply requirement | 220V/50HZ |
| external dimension | 5520*1080*1620 |
Product Feature And Application
Product Feature:
(1) Adopting 1.5G acceleration dramatically improves the efficiency of cutting.
(2) The length of tail material is greater than or equal to 50mm, which can effectively save material.
(3) The cutting precision is within ±0.2mm, which meets the demand of fine processing.
The standalone Bus System is designed with a high degree of autonomy to ensure it operates efficiently and reliably. The system’s ability to perform complex tasks with minimal supervision is a testament to its sophisticated design and programming. This system is designed to meet the demands of small to medium pipe cutting, providing a seamless and smooth operator experience.
The Integrated Pneumatic Chuck is a specialized tool designed to provide a fast and accurate clamping action that is gentle and non-invasive to the surface of the pipe. The system utilizes compressed air to actuate the clamping mechanism, which reacts quickly to hold the pipe in place. The high accuracy of the chuck ensures that the pipe is clamped at the precise pressure required to maintain its roundness and prevent any distortion, which is essential for subsequent processes such as cutting or welding.

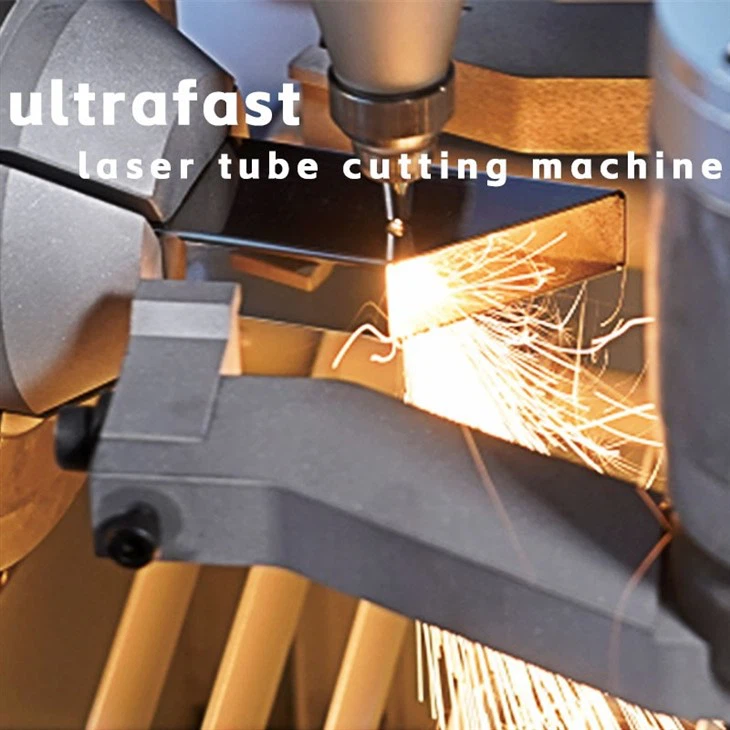

In addition to operating at very high speeds, the precision design and cutting-edge technology of the power head ensures a high degree of accuracy in every cut. This accuracy is critical to maintaining the structural integrity of the pipe and meeting the specific dimensional requirements of profiled pipe. Whether used for construction, automotive applications or other specialized uses, the power head enables the tube profile cutting machine to make accurate cuts that meet the highest quality standards.
Application Industry:
Production Details
Product Qualification
Strength proves trustworthiness:
Ingenuity manufacturing, strength exhibition:
Our Certificates
Delivery, Shipping And Serving
1) Manufacturer direct sales: We specialize in producing laser cutting machines for small and medium-sized pipes, with strict quality control.
2) Quality assurance: Process design and validation before bulk production.
3) Professional team: We have a professional sales team that provides you with fast and enthusiastic service throughout the entire process.
FAQ
