Cnc Laser Tube Cutting Machine
999999,00 zł

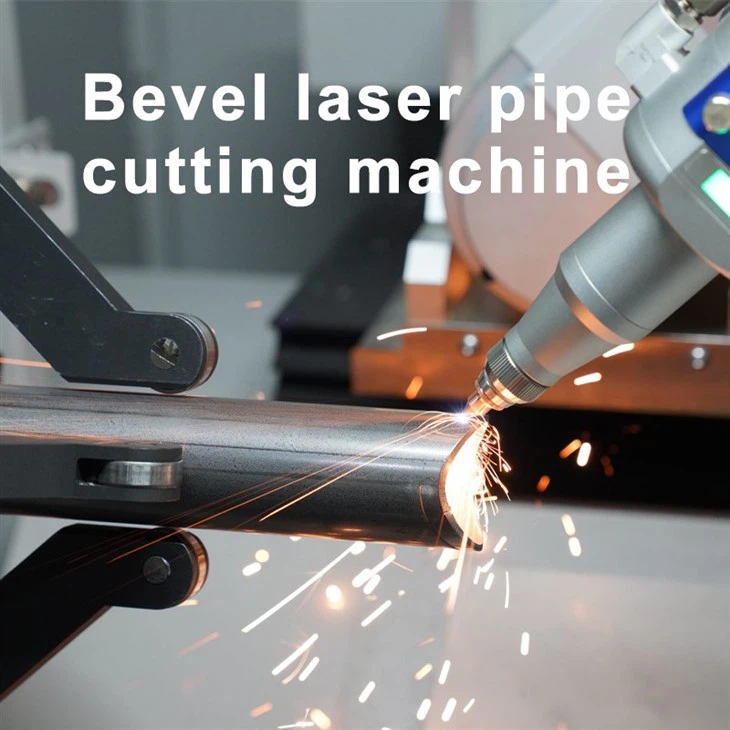

Automatic bevel laser cutting machine with its efficient processing capacity, greatly improve the production efficiency. Traditional manual or mechanical cutting methods are often inefficient, while automatic bevel laser cutting machine can quickly and accurately complete the pipe cutting, shortening the production cycle and reducing costs.
Do You Have Questions? Call Us +1 255 854 55 26
Description

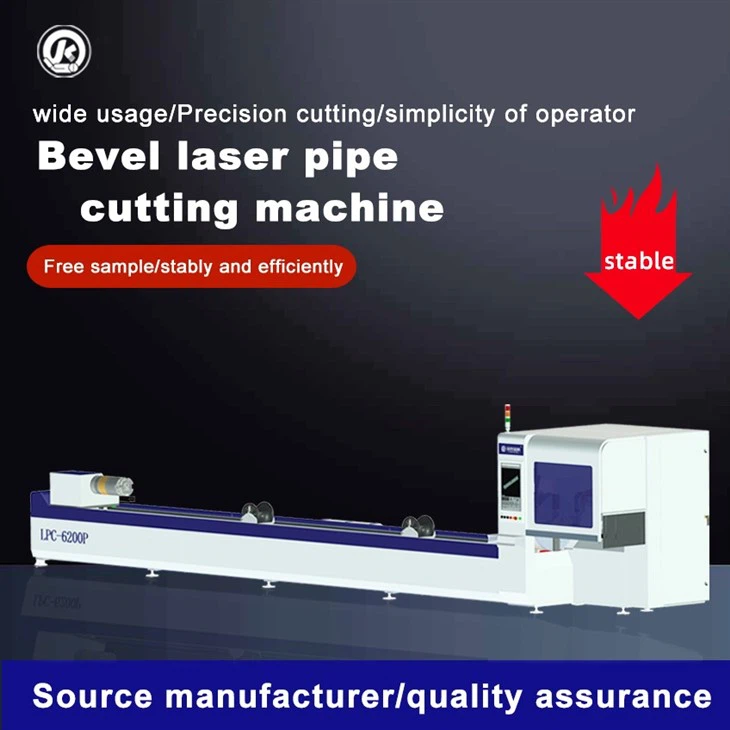

Cnc Laser Tube Cutting Machine
Product Introduction

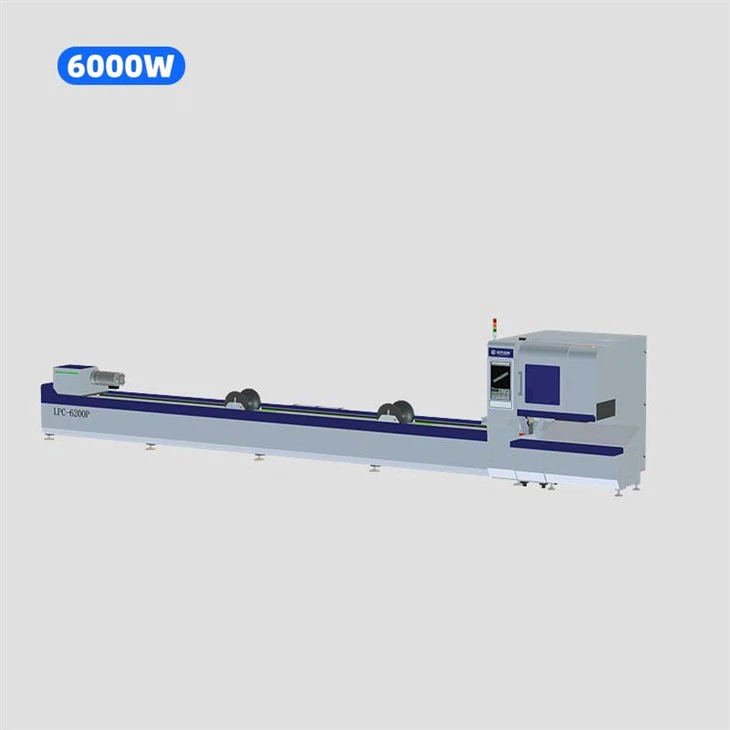

A22 CNC laser tube cutting machine is designed for thick pipe laser pipe cutting machine, high power increases the depth of cutting, can bring more benefits for manufacturers, solve the problem of thick pipe difficult to cut, but also can use oxygen combustion, easy to operate fast.
Product Parameter
| Mode | LPC6200P CNC laser tube cutting machine |
| Length of pipe | 6300MM |
| Diameter of pipe | Φ20-φ220 |
| Tail | Bevel (≥430MM)
Straight cut (≥100MM) |
| U axis swing axis stroke | ±45° |
| Cutting precision | ±0.1MM |
| Position precision | ±0.2MM |
| Accelerated speed | 1.2G |
| Pulling way | Air-operated |
| Total weight | 4.5T |
| Power Supply | 380V |
| Dimension | 9518mm×1880mm×2280mm |
Product Feature And Application
Product Feature:
(1) Precision within ±45 degrees.
(2) Laser head designed with proprietary technology.
(3) Complimentary software upgrades.
Stronger Technology
Discover ±45° bevel cutting and precise double chuck positioning. Experience unparalleled precision and efficiency in your work like never before with our advanced technology.
Wide Range of Application
Delivering superior performance on round, square or shaped pipes, our CNC laser tube cutting machine is designed for diverse applications.
Self-developed Bus System
It integrates a self-developed bus system for quick response times, enhanced signal transmission efficiency, simplified lines and exceptional stability. The result? A streamlined operation that supports corner processes, reducing rotations and boosting processing efficiency significantly.

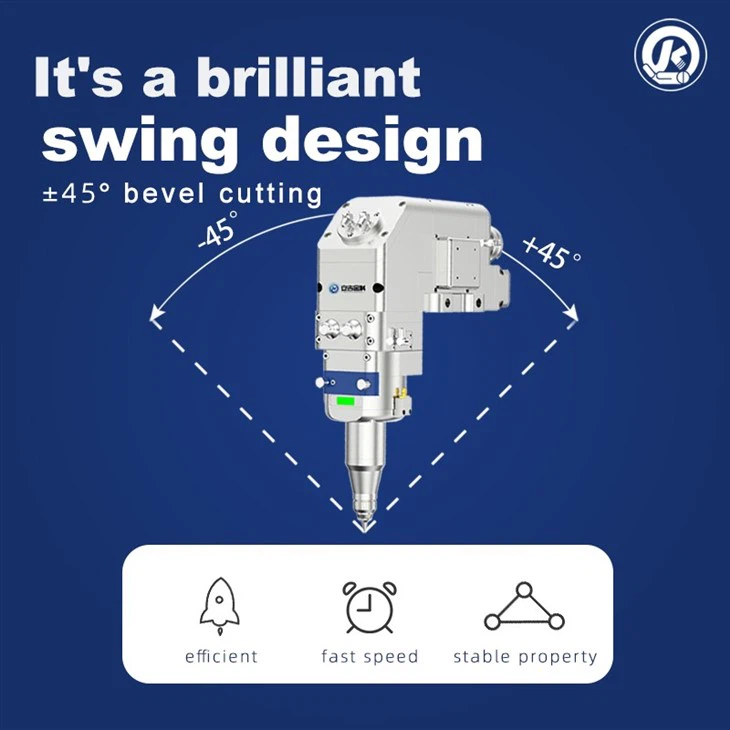

Original High-precision Groove Swing Mechanism
Our unique groove swing mechanism, featuring an innovative concentric swing design, enhances swing precision while the integrated automatic height adjustment guarantees precise cutting surfaces.
Application Industry:
Production Details
Product Qualification
Strength proves trustworthiness:
Ingenuity manufacturing, strength exhibition:
Our Certificates
Delivery, Shipping Ad Serving
1) Convenient after-sales service:We have resident after-sales personnel in different regions, and after-sales service is very convenient
2) After-sale gift:Normal is to send 5 copper nozzle and 6 lenses, if you also need to buy can contact the company directly to buy, to ensure the quality
3) Free nesting software:We are self-developed system installed in the equipment, not easy to lose drawing data, customer operation is also convenient.
4) Equipment for transporting materials: These devices on the market do not have a self-locking function, our equipment has this function, if the weight of the material is too large will not appear skid phenomenon.
